Posting Results from an External Model
Some requests can trigger a 3rd party AI model to analyze scans. That 3rd party will then be able to post the results of the analysis. The REST endpoint where those results may be posted is documented in the Techcyte Swagger docs.
Results Schema
Request Body
| Key | Description | Type |
|---|---|---|
| caseResults | Free form results for all scans in the request. Use if there are high level, cross scan results found by the model. | object |
| scanResults | Array of results for each scan in the request | array of objects (ScanResult) |
The caseResults object generally accepts freeform key/value pairs, but also permits a special triage key, the value for which is an object of {"category": string, "score": number} and populates the worklist "Triage" column.
For example:
{
"caseResults": {
"triage": {
"category": "Basaloid",
"score": 0.87
}
},
"scanResults": [...]
}
ScanResult object
| Key | Description | Type |
|---|---|---|
| scanId | id of scan | string |
| workflow | Object representation of results of full AI workflow | AiWorkflow |
| results | Free form high level results for the scan. Use if there are high level results for the scan. | object |
| geojson | Feature collection containing annotations found on the scan | object (GeoJSON feature collection) |
| qcFailReasons | Array of quality control (qc) failure reasons for the scan. Reasons must be configured in your company | array of string(s) eg: ["blurry"] |
The results object has two special keys: external_url and summary, both are required to be strings.
If external_url is set, then the Techcte UI will create a clickable link to the provided url when displaying the scan results.
The summary for each scan will be displayed at a top level alongside the scans in the ai results panel.
All other keys will be displayed when viewing algorithm details for each scan.
AiWorkflow object
| Key | Description | Type |
|---|---|---|
| model_name | Name of the model | string |
| provider | Name of the model provider | string |
| ruo | Indicate if the model is for research use only | bool |
| report | Workflow data, must be one of the available workflow data types | WorkflowData |
WorkflowData types
Currently Techcyte support several different workflow data types: Basic Annotation+Data, Whole Slide Differential, Area Differential and Semi-Quantitative Differential.
Each of these types has a type key to identify which type is being used and how to marshal and unmarshal the data.
Basic Annotation + Data
| Key | Description | Type |
|---|---|---|
| type | Fixed string identifying the workflow data type | "Basic" |
| results | List of named key-value result pairs (e.g., diagnosis, scores, counts) | array of objects {name: string, result: string} |
| segments | List of named segments/regions with optional text result and GeoJSON annotations (e.g., tumor region, grade zone, mitosis locations) | array of objects {name: string, result?: string, feature_collection: GeoJSON FeatureCollection} |
Whole Slide Differential
| Key | Description | Type |
|---|---|---|
| type | fixed string | "WholeSlideDifferential" |
| points | cells or objects found by the model | array of point objects |
| scores | map of score names to score values | map from string to number |
| positivity_threshold | threshold for a given point to be considered positive | number |
Area Differential
| Key | Description | Type |
|---|---|---|
| type | fixed string | "AreaDifferential" |
| regions | Areas considered in the workflow and the cells or objects found in them | array of DifferentialRegion objects |
| scores | map of score names to score values | map from string to number |
| positivity_threshold | threshold for a given point to be considered positive | number |
Differential Region
This object only exists under the regions key of the Area Differential type.
| Key | Description | Type |
|---|---|---|
| region | GeoJSON feature with a polygon geometry | GeoJSON feature |
| weight | weight given to this region in score calculation | number |
| score | region score | number |
| points | cells or objects found in the region | array of points |
Semi-Quantitative Differential
| Key | Description | Type |
|---|---|---|
| type | fixed string | "SemiQuantitativeDifferential" |
| points | cells or objects found by the model | array of point objects |
| scores | map of score names to score values | map from string to number |
AI Workflow Recipes

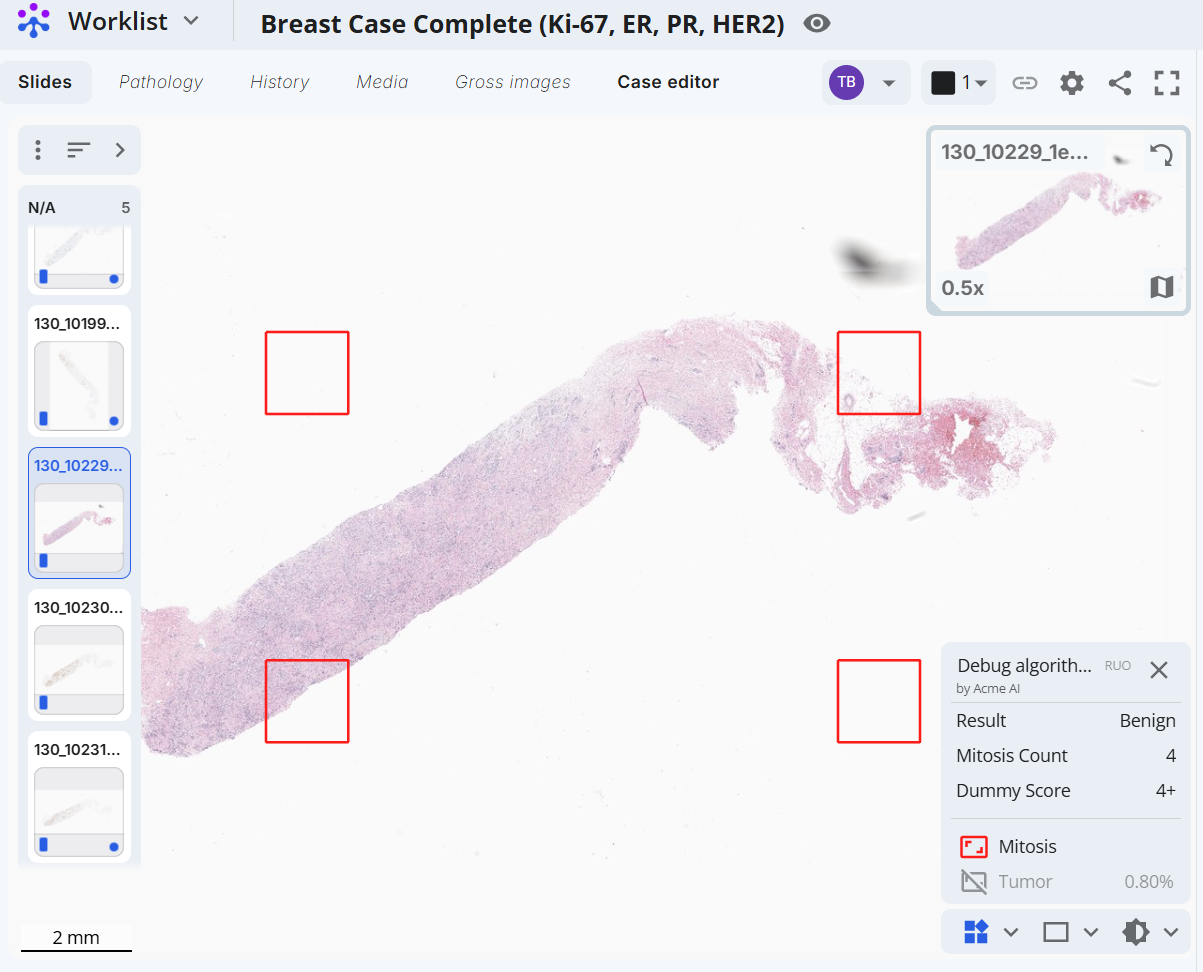

Each AI workflow maps to a unique widget displayed in Fusion. Examples added below contain json data posted to the external model results endpoint and the resulting frontend widget displayed.
Basic Annotation + Data
Display image annotations and key value data pairs, with the ability to toggle individual classes on and off.
{
"caseResults": {},
"scanResults": [
{
"scanId": "8946136",
"workflow": {
"model_name": "Mitosis Detection Model",
"provider": "Acme AI",
"ruo": "True",
"report": {
"type": "Basic",
"results": [
{
"name": "Result",
"result": "Benign"
},
{
"name": "Mitosis Count",
"result": "4"
},
{
"name": "Dummy Score",
"result": "4+"
}
],
"segments": [
{
"name": "Tumor",
"result": "Percentage: 0.80%",
"feature_collection": {
"type": "FeatureCollection",
"features": []
}
},
{
"name": "Mitosis",
"result": "",
"feature_collection": {
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[16716, 8400],
[16716, 13998],
[22314, 13998],
[22314, 8400],
[16716, 8400]
]
]
},
"properties": {
"name": "Mitosis",
"color": "#ff0000"
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[16716, 30798],
[16716, 36396],
[22314, 36396],
[22314, 30798],
[16716, 30798]
]
]
},
"properties": {
"name": "Mitosis",
"color": "#ff0000"
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[55746, 8400],
[55746, 13998],
[61344, 13998],
[61344, 8400],
[55746, 8400]
]
]
},
"properties": {
"name": "Mitosis",
"color": "#ff0000"
}
},
{
"type": "Feature",
"geometry": {
"type": "Polygon",
"coordinates": [
[
[55746, 30798],
[55746, 36396],
[61344, 36396],
[61344, 30798],
[55746, 30798]
]
]
},
"properties": {
"name": "Mitosis",
"color": "#ff0000"
}
}
]
}
}
]
}
}
}
]
}
GeoJSON
Annotations reported to techcyte will use the GeoJSON standard.
For each scan the client will report a GeoJSON FeatureCollection that contains all the annotations reported for that scan.
Each reported annotation will be a Feature object within the FeatureCollection, and each Feature must have an annotation_type key defined in its properties field.
Each GeoJSON feature contains a geometry that can be a one of multiple types.
In the example there is a Polygon, a MultiPoint and a GeometryCollection.
Heatmaps may be reported as a set of contours in a single Feature with a geometry type of GeometryCollection.
The contours are Polygon geometries and their color is specified with the contour_colors key in the properties map of the GeometryCollection.
The countour_colors is an array of color hex strings.
See more information about the GeoJSON standard on the GeoJSON format standard website.
Additional Examples
The following example uses the geojson key to upload objects onto the scan.
{
"caseResults": {
"mitosis_count": 1000
},
"scanResults": [
{
"scanId": "T1J4hvqyD4",
"results": {
"mitosis_count": 550,
"ki67score": .55,
"external_url": "https://fake.my-app.com/results/for/this/scan",
"summary": "this is my summary"
},
"qcFailReasons":[],
"geojson": {
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"bbox": [ 250, 100, 300, 200 ],
"geometry": {
"type": "Polygon",
"coordinates": [
[
[ 250, 100 ],
[ 250, 200 ],
[ 300, 250 ],
[ 300, 100 ],
[ 250, 100 ]
]
]
},
"properties": {
"annotation_type": "tumor"
}
},
{
"type": "Feature",
"properties": {
"annotation_type": "tumor_confidence",
"contour_colors": [
"#AA0000",
"#CC0000",
"#FF0000"
]
},
"geometry": {
"type": "GeometryCollection",
"geometries": [
{
"type": "Polygon",
"coordinates": [
[
[ 1, 2 ],
[ 3, 2 ],
[ 3, 5 ],
[ 1, 5 ],
[ 1, 2 ]
]
]
},
{
"type": "Polygon",
"coordinates": [
[
[ 1, 2 ],
[ 3, 2 ],
[ 3, 5 ],
[ 1, 5 ],
[ 1, 2 ]
]
]
},
{
"type": "Polygon",
"coordinates": [
[
[ 1, 2 ],
[ 3, 2 ],
[ 3, 5 ],
[ 1, 5 ],
[ 1, 2 ]
]
]
}
]
}
}
]
}
},
{
"scanId": "T1J4hvqyD5",
"results": {
"mitosis_count": 450
},
"geojson": {
"type": "FeatureCollection",
"features": [
{
"type": "Feature",
"geometry": {
"type": "MultiPoint",
"coordinates": [
[ 80, 50 ],
[ 90, 49 ],
[ 60, 30 ]
]
},
"properties": {
"annotation_type": "mitosis_count"
}
}
]
}
}
]
}
This example uploads a workflow to the scan
{
"scanResults": [
{
"scanId": "T1J4hvqyD4",
"qcFailReasons": [],
"workflow": {
"key": "Proliferation Score",
"model_name": "KI67 Breast-4R",
"provider": "Mindpeak",
"ruo": true,
"report": {
"type": "AreaDifferential",
"scores": {
"positivity_threshold": 0.4376593987751759,
"proliferation_score": 0.13330553429026412
},
"regions": [
{
"score": 0.2150000035762787,
"weight": 0.05,
"region": {
"bbox": [ 11512, 41252, 13048, 42850 ],
"geometry": {
"coordinates": [ [ [ 13048, 41942 ], [ 13040, 42042 ], [ 12986, 42316 ], [ 12960, 42404 ], [ 12872, 42560 ], [ 12830, 42610 ], [ 12678, 42726 ], [ 12658, 42736 ], [ 12632, 42748 ], [ 12320, 42846 ], [ 12150, 42850 ], [ 12048, 42850 ], [ 11590, 42568 ], [ 11568, 42544 ], [ 11522, 42414 ], [ 11512, 41664 ], [ 11526, 41632 ], [ 11610, 41510 ], [ 11728, 41396 ], [ 11842, 41318 ], [ 11888, 41296 ], [ 11938, 41282 ], [ 12408, 41252 ], [ 12790, 41476 ], [ 12852, 41526 ], [ 12878, 41556 ], [ 12944, 41644 ], [ 12984, 41722 ], [ 13020, 41824 ], [ 13044, 41912 ] ] ],
"type": "Polygon"
},
"properties": {
"annotation_type": "region",
"name": "Region A"
},
"type": "Feature"
},
"points": [
{
"score": 0.32819,
"type": "tumor",
"x": 13042,
"y": 41972
},
{
"score": 0.33399,
"type": "tumor",
"x": 13030,
"y": 41884
},
{
"score": 0.32082,
"type": "tumor",
"x": 11938,
"y": 41282
},
{
"score": 0.63977,
"type": "tumor",
"x": 13044,
"y": 41912
}
]
},
{
"score": 0.15299999713897705,
"weight": 0.16,
"region": {
"bbox": [ 34664, 16392, 36298, 17894 ],
"geometry": {
"coordinates": [ [ [ 36298, 16998 ], [ 36284, 17064 ], [ 36276, 17094 ], [ 36108, 17504 ], [ 36052, 17570 ], [ 35528, 17812 ], [ 35452, 17830 ], [ 35076, 17894 ], [ 34880, 17806 ], [ 34824, 17764 ], [ 34802, 17742 ], [ 34696, 17574 ], [ 34664, 17322 ], [ 34682, 17272 ], [ 34710, 17196 ], [ 34774, 17080 ], [ 34800, 17050 ], [ 34908, 16934 ], [ 35450, 16482 ], [ 35612, 16434 ], [ 35926, 16392 ], [ 36148, 16532 ], [ 36270, 16706 ], [ 36296, 16830 ] ] ],
"type": "Polygon"
},
"properties": {
"annotation_type": "region",
"name": "Region B"
},
"type": "Feature"
},
"points": [
{
"score": 0.48057,
"type": "tumor",
"x": 34880,
"y": 17806
},
{
"score": 0.31419,
"type": "tumor",
"x": 36296,
"y": 16830
},
{
"score": 0.31906,
"type": "tumor",
"x": 36052,
"y": 17570
},
{
"score": 0.51786,
"type": "tumor",
"x": 36298,
"y": 16998
},
{
"score": 0.31818,
"type": "tumor",
"x": 36108,
"y": 17504
}
]
}
]
}
}
}
]
}
