Creating a Quality Control Failure Reason

In some cases, you may want your model to report quality control failures. By setting up a QC Failure Reason in Fusion and reporting this reason via external results route your scan will be flagged appropriately.

I. Step-by-Step Instructions

We'll need to: visit the quality control faiure reasons page, create the reason, and report.

1: Visit the company configuration page

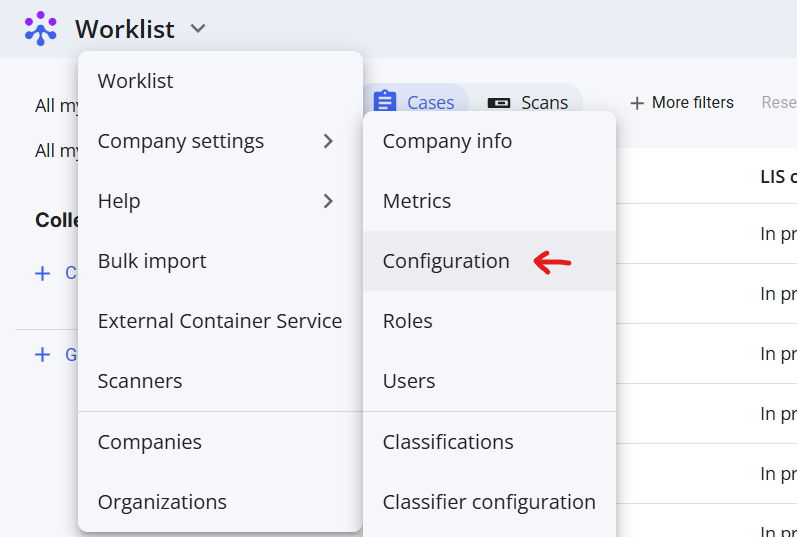

From your worklist view, click the dropdown menu, select Company settings -> configuration

2: Create a new quality control failure reason

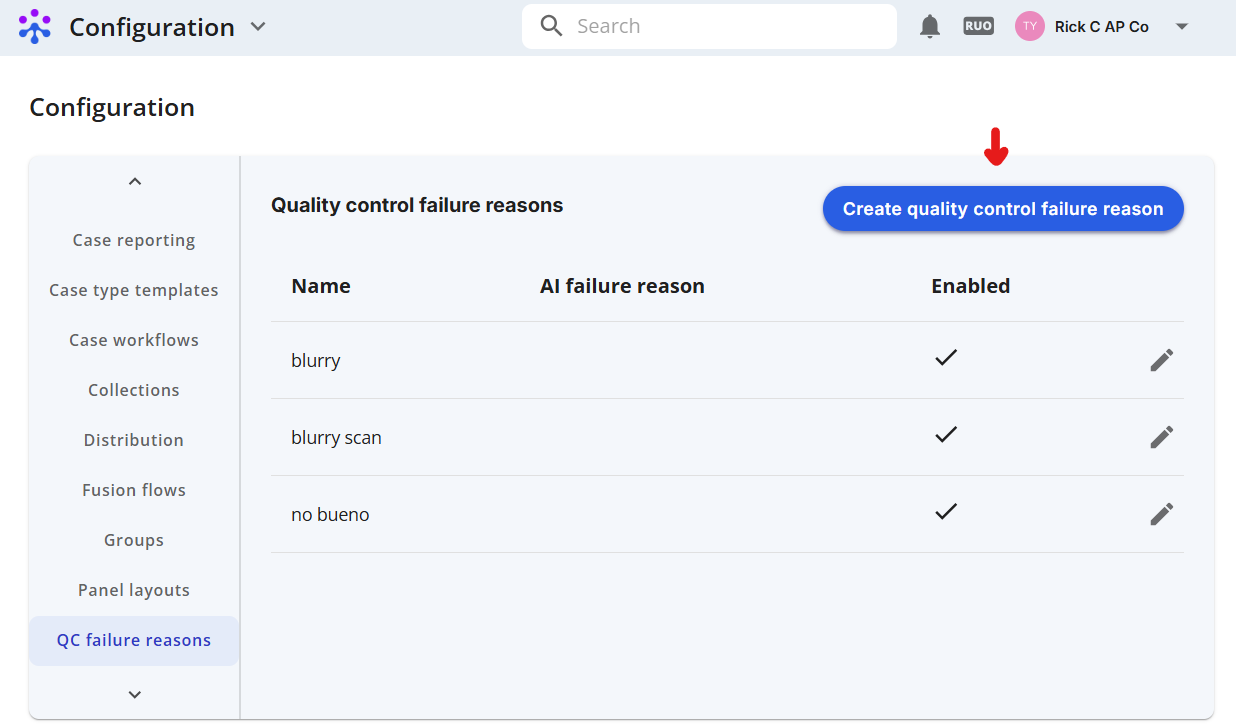

From company configuration, click the "QC failure reasons" tab, then click the (Create quality control failure reason) button to add a new reason.

3: Configure the reason

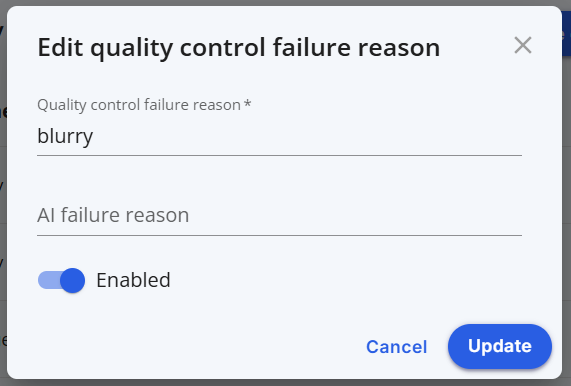

Below is an example configuration for "blurry" being the fail reason. Customize to fit your needs.

4: Reporting in external results route

Scans can now be flagged for this reason by supplying a qcFailReasons key in the scanResults. See posting external model results for full details and examples.

{
    "caseResults": {},
    "scanResults": [
      {
      "scanId": scan_id,
      "qcFailReasons": ["blurry"]
      }
    ]
}

5: Viewing in Fusion

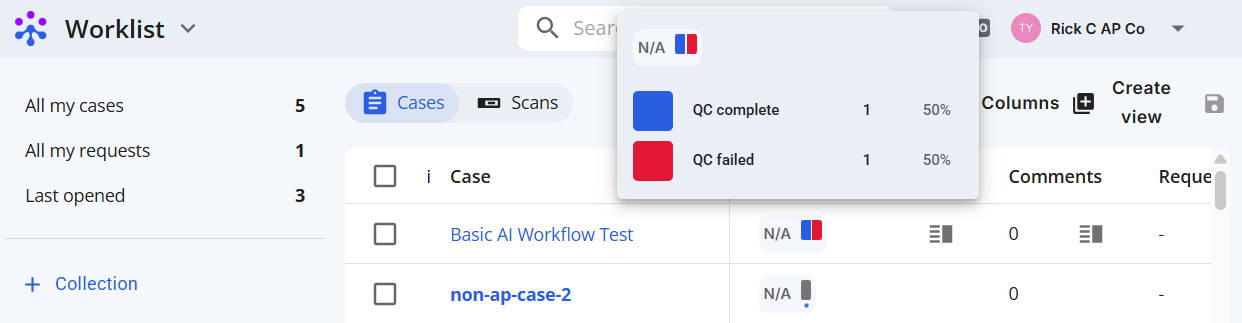

Posted QC results are viewable in the worklist view

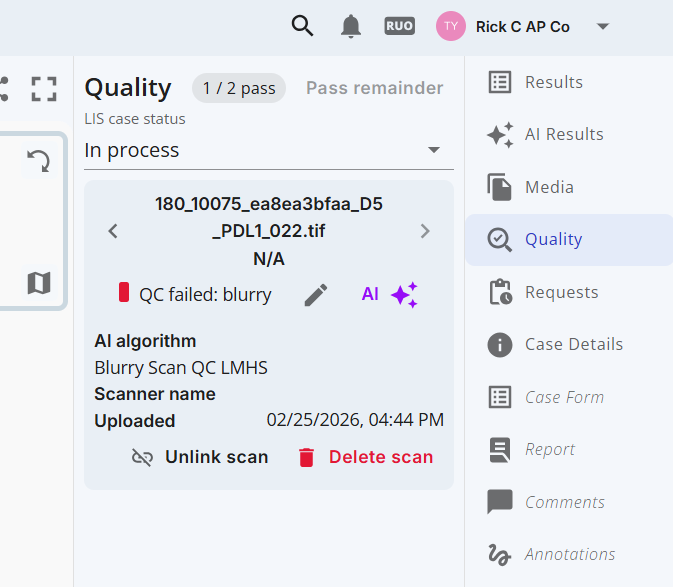

and details can be viewed in the scan view via the Quality tab.
